chemicals, metallurgy, transportation, hydraulic engineering and so on.
2 layers puzzle type are very popular in China, it makes your parking spaces quantity much more than it was with low cost and short installation time.
With the lifting and sliding movements of pallets, the cars could be parked and retrieved. The driver only needs to swipe a card or push the buttons at operational box, the retrieving process will be applied automatically.

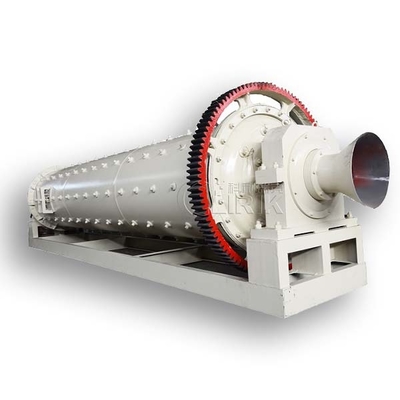

Model | Cylinder rotary speed(r/min) | Loading ball weight(t) | Input size(mm) | Discharge size(mm) | Capacity(t/h) | Motor power (kw) | Weight (t) |
Ф900×1800 | 30 | 1.5 | ≤20 | 0.075-0.89 | 0.8-2 | 18.5 | 4.6 |
Ф900×3000 | 39 | 2.7 | ≤20 | 0.075-0.89 | 1-4 | 22 | 5.6 |
Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Ф1200×4500 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ф1500×3000 | 27 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Ф1830×3000 | 25 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Ф1830×6400 | 24 | 21 | ≤25 | 0.074-0.4 | 7-16 | 210 | 34 |
Ф1830×7000 | 24 | 23 | ≤25 | 0.074-0.4 | 8-18 | 245 | 36 |
Ф2100×3600 | 23 | 19 | ≤25 | 0.074-0.4 | 10-36 | 210 | 46 |
Ф2200×4500 | 21 | 27 | ≤25 | 0.074-0.4 | 12-23 | 280 | 48.5 |
Ф2200×6500 | 21 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Ф2200×7000 | 21 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
Ф2200×7500 | 21 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
Ф2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 18-45 | 320 | 65 |
